AREPS290 Common Rail Injector Test Bench
Haz clic en el botón de WhatsApp para chatear o deja un mensaje. Nos pondremos en contacto contigo en menos de 12 horas.
Detalles

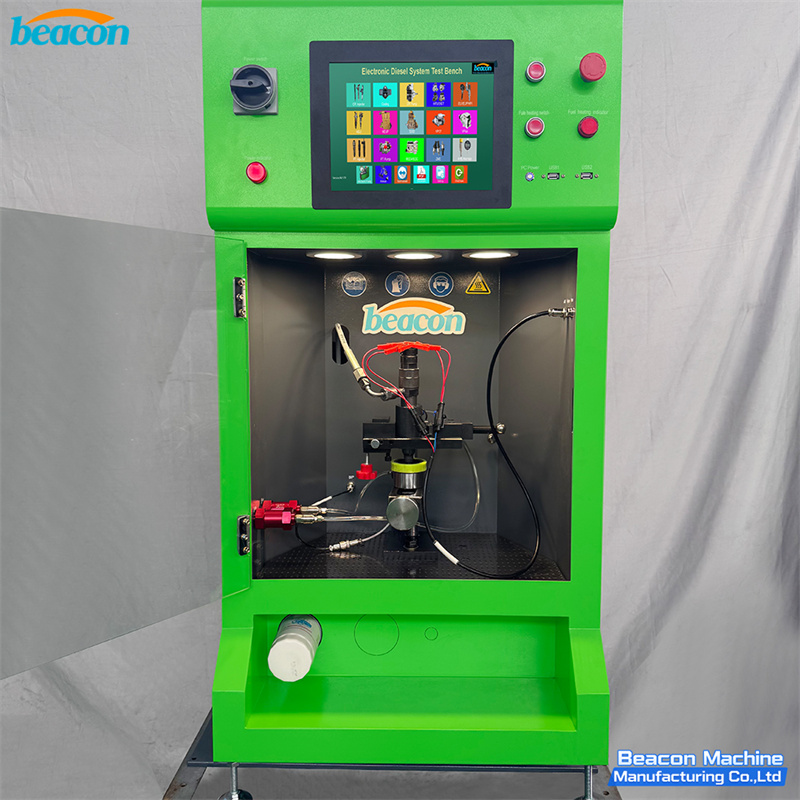

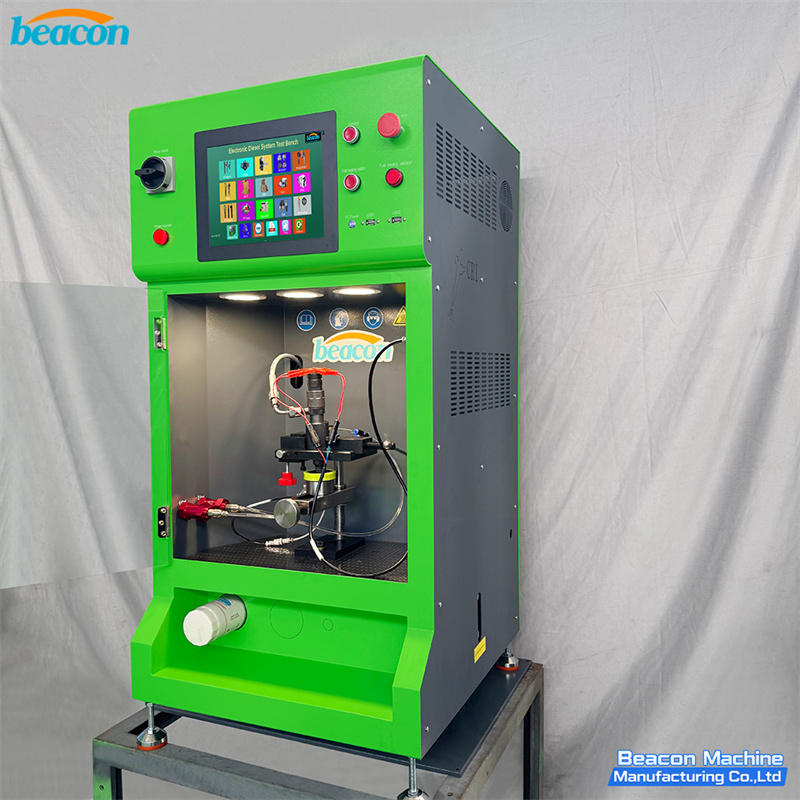

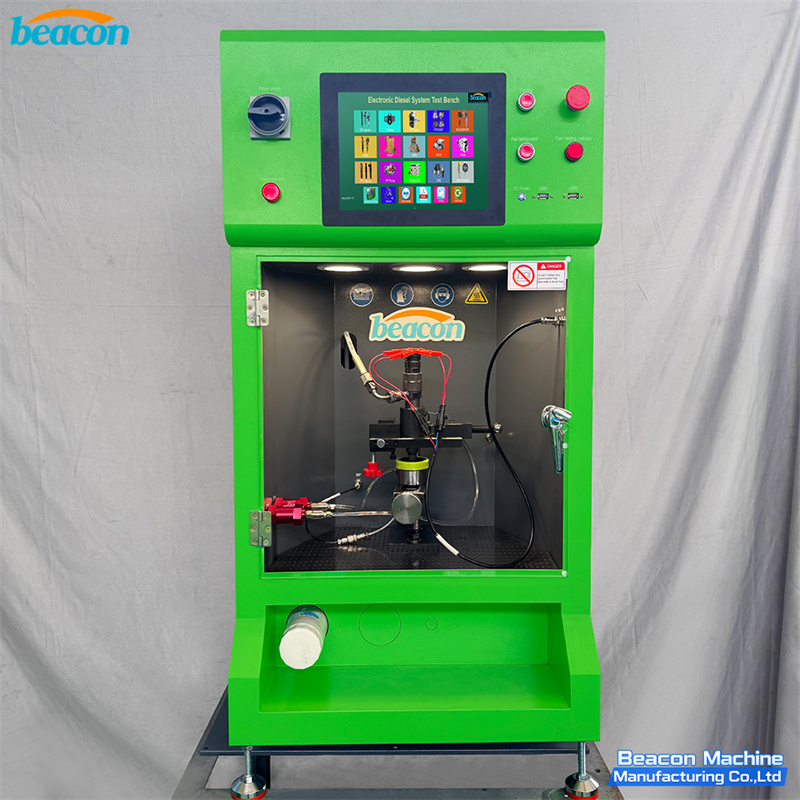

EPS290 Common Rail Injector Test Bench
The EPS290 Common Rail Injector Test Bench is a compact, high-efficiency single-channel testing platform engineered for diagnosing modern diesel fuel systems. Standardized with a 2.6KW single-phase 220V configuration, this advanced bench incorporates an industrial flow meter and a genuine Bosch CP1H high-pressure common rail pump to provide original factory-level testing precision within a streamlined footprint.
Powered by an intelligent control system with a high-definition touch screen, the EPS290 natively supports automatic testing for high-speed solenoid valve injectors as well as third-generation piezoelectric crystal injectors. Pre-loaded with an expansive database covering thousands of calibration profiles, it delivers premium multi-brand diagnostic capabilities tailored for professional diesel repair workshops, automotive laboratories, and fleet service garages.
EPS290 Common Rail Injector Test Bench Advantage
- Dual Injector Technology Support: Seamlessly drives and calibrates standard high-speed solenoid valve injectors alongside advanced third-generation piezoelectric crystal injectors.
- Intelligent Pressure Management: Features a specialized PID algorithm linked with multiple rail pressure sensor profiles (Bosch, Denso, Delphi) to deliver rapid, rock-solid pressure adjustments up to 200MPa.

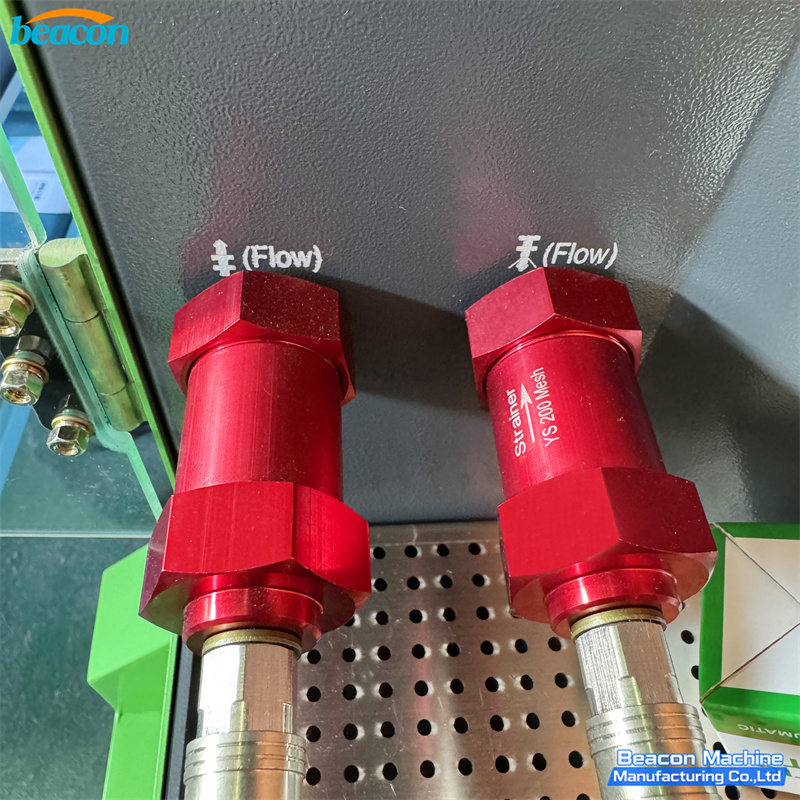

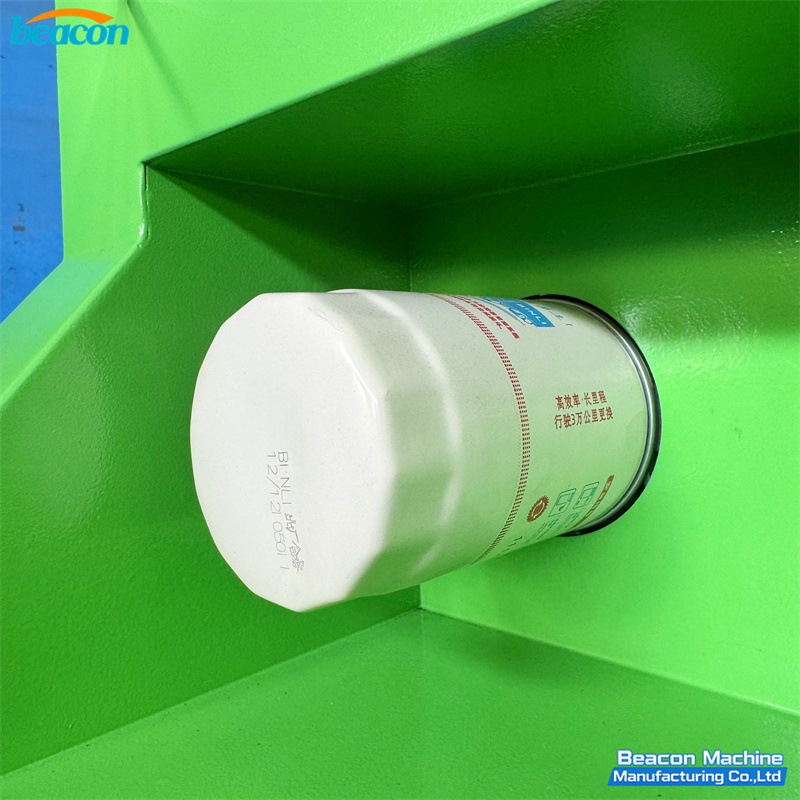

- Precision Flow Meter Measurement: Utilizes a digital flow meter alongside a dedicated 3μ fuel filtering system to lock in precise delivery and return data.
- Comprehensive Coding and BIP Functionality: Supports free-of-charge compensation coding for Bosch, Denso, Delphi, and Siemens, fully paired with standard BIP (Begin of Injection Period) response time testing.
- Massive Factory Master Database: Pre-programmed with 7,725 common rail injector diagnostic profiles and 4,204 dedicated injector coding data paths.
- Robust Safety and Hardware Protection: Equipped with responsive short-circuit protection across both software and hardware architectures to maximize machine reliability and operator safety.
- Global Operation Interface: The system supports 15 international languages, includes automatic network updates with 1 year of free software upgrades, and integrates TeamViewer for remote assistance.
- High Modular Scalability: Offers modular expansion capabilities to test Bosch 4-pin injectors, DRV/HPV control valves, rail pressure sensors, solenoids, and AHE injector dynamic stroke.

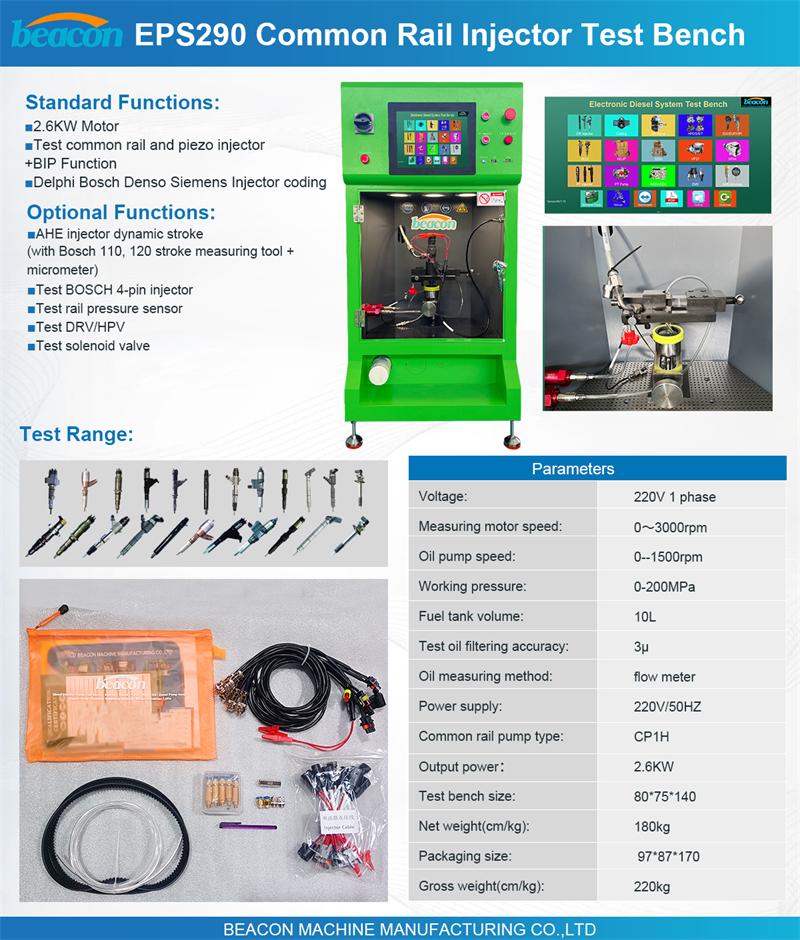

parámetro
| Technical Features | Specifications / Standard Configurations |
|---|---|
| Model | EPS290 |
| Power Output | 2.6 kW |
| Power Supply / Voltage | 220V Single-Phase, 50Hz |

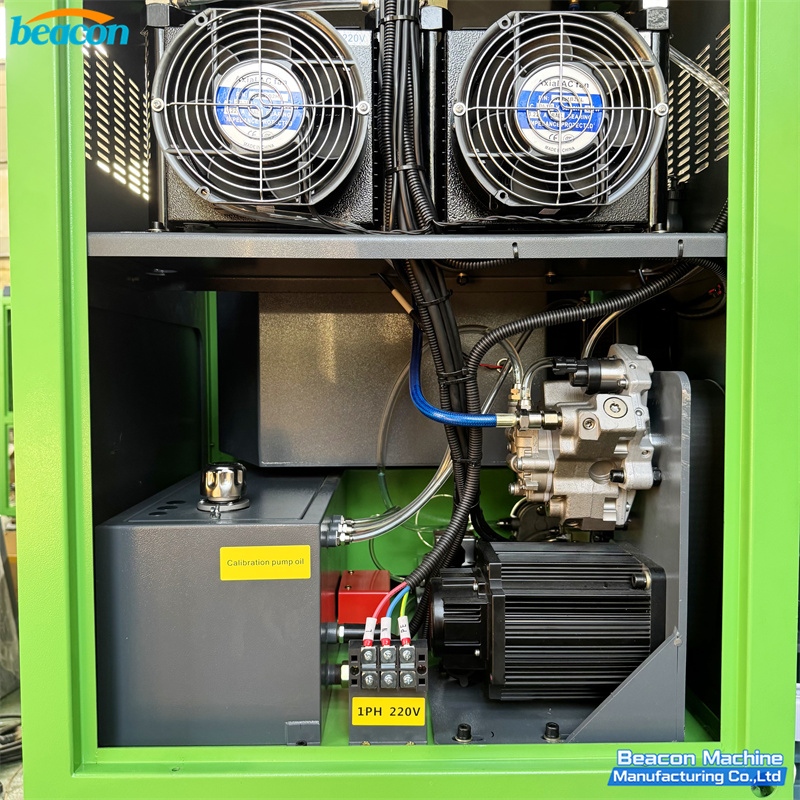

| Common Rail Pump Type | Bosch CP1H Pump |
| Oil Measuring Method | Digital Flow Meter |
| Measuring Motor Speed | 0 to 3000 rpm |
| Oil Pump Speed | 0 to 1500 rpm |
| Maximum Working Pressure | 0 to 200 MPa (0 to 2000 bar) |
| Fuel Tank Volume | 10 Liters |
| Test Oil Filtering Accuracy | 3 μm |
| Test Bench Dimensions (L*W*H) | 80 x 75 x 140 cm |
| Net Weight | 180 kg |
| Packaging Size (L*W*H) | 97 x 87 x 170 cm |
| Gross Weight | 220 kg |
| Standard Functions | Solenoid Valve Injectors, Piezoelectric Injectors, BIP Response Time, Multi-brand Coding |
| Optional Upgrade Modules | Bosch 4-Pin Injectors, DRV/HPV Testing, Rail Pressure Sensors, Solenoids, AHE Dynamic Stroke |
