ARCR304(S) High Pressure Common Rail Injector Test Bench
Haz clic en el botón de WhatsApp para chatear o deja un mensaje. Nos pondremos en contacto contigo en menos de 12 horas.
Detalles

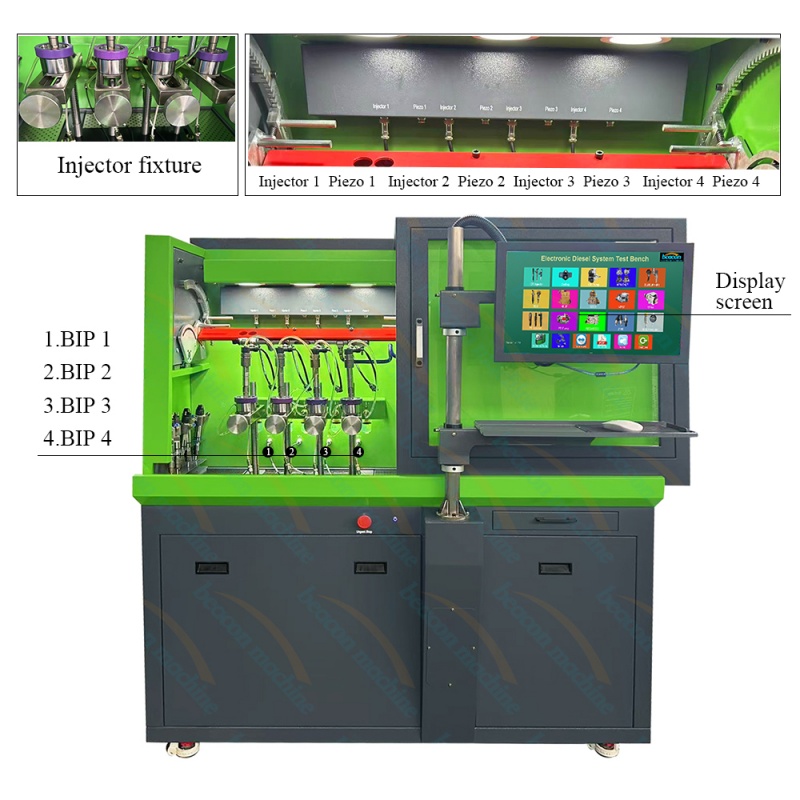

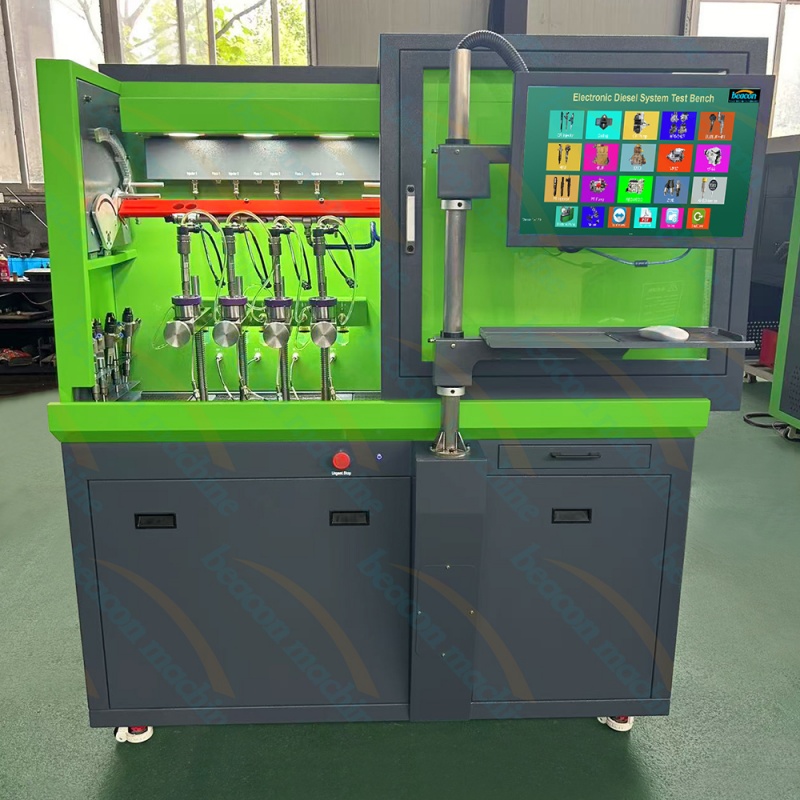

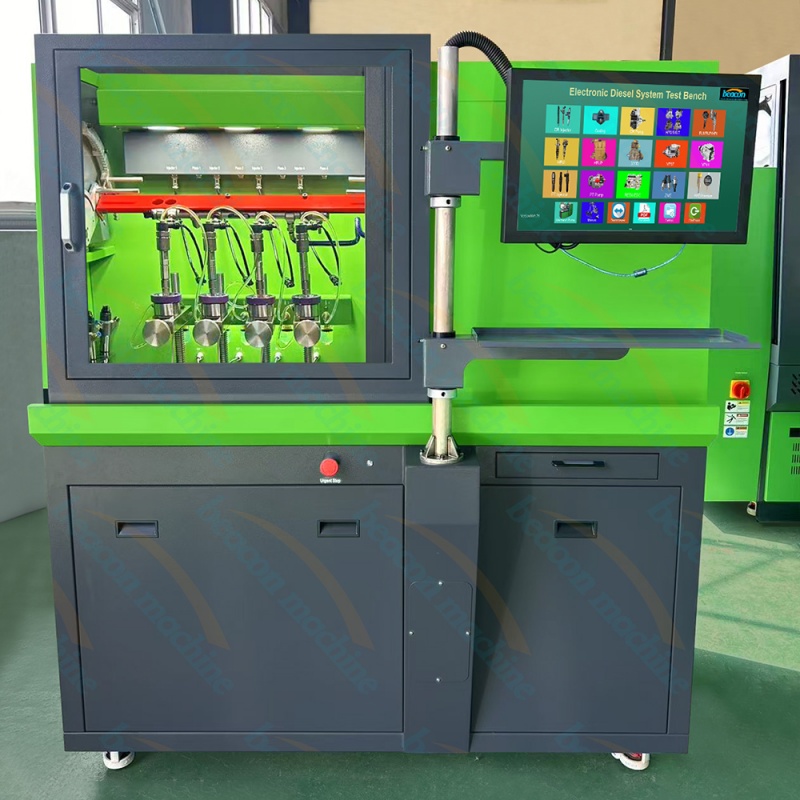

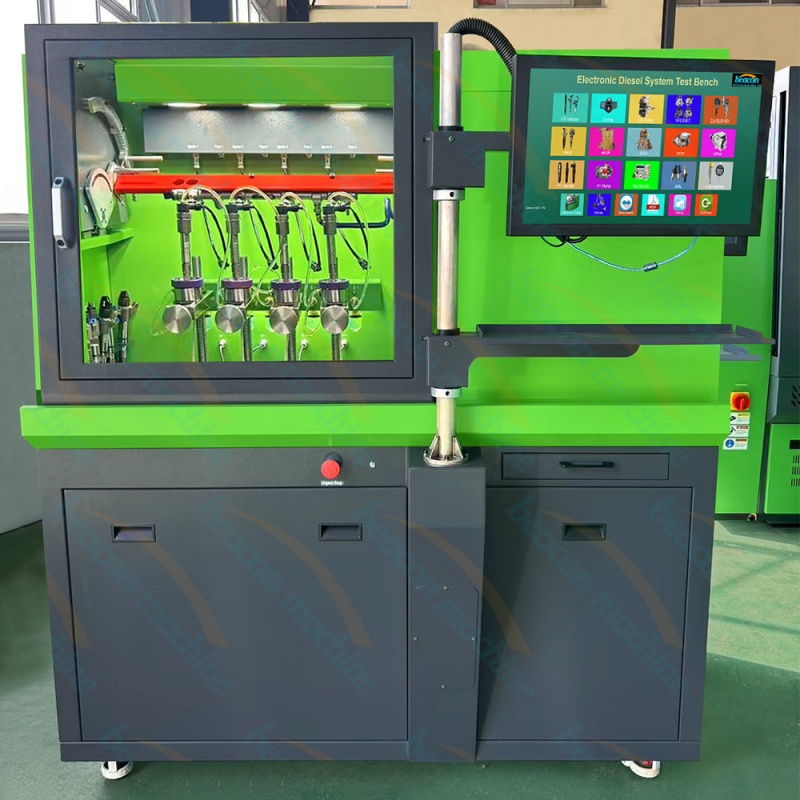

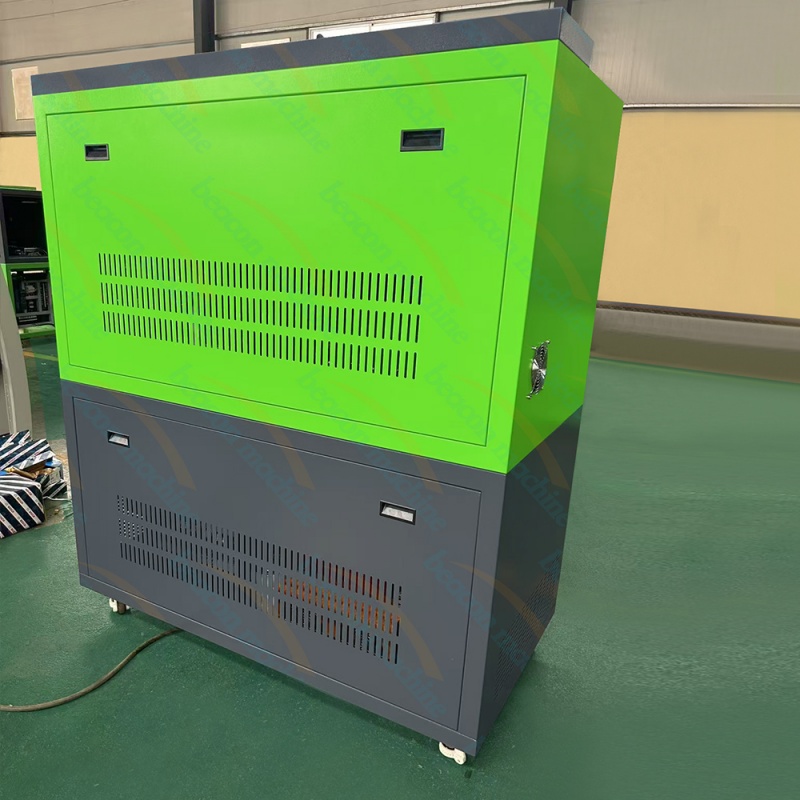

CR304(S) High Pressure Common Rail Injector Test Bench
The CR304(S) is a professional, industrial-grade common rail injector test bench engineered to accurately imitate the real-world operating conditions of a diesel engine ECU (Engine Control Unit). It provides highly precise common rail system control signals to drive and calibrate high-pressure injectors, making it an essential diagnostic platform for advanced diesel service shops, commercial fleet garages, and fuel system rebuilding centers.
This equipment features an intelligent automated control system that allows technicians to flexibly set, adjust, and save drive signal parameters according to actual workshop requirements. By delivering precise execution across multiple test steps, the CR304(S) provides an efficient and definitive diagnostic solution to judge, repair, and balance the delivery performance of mainstream global fuel systems.
CR304(S) High Pressure Common Rail Injector Test Bench Advantage
- Advanced ECU Simulation: Flawlessly replicates real-world diesel engine ECU signals to drive high-pressure injectors with maximum accuracy.
- Comprehensive System Compatibility: Fully supports testing and diagnostics for standard common rail solenoid and advanced piezoelectric ceramic injectors from Bosch, Denso, Delphi, and more.
- Flexible Parameter Customization: Allows operators to customize, fine-tune, and save specific drive signal characteristics to easily match unique field-testing requirements.
- Dual Testing Modes: Features both standard thorough diagnostics and a dedicated quick-test mode (20 seconds per condition) to drastically enhance workshop throughput.
- Automated Report Generation: Automatically sequence through preset operational conditions and outputs comprehensive, easy-to-read calibration reports upon completion.
- Rugged Heavy-Duty Structure: Built with a massive 350kg high-rigidity frame to absorb high-pressure harmonics and ensure maximum testing stability.
parámetro
| Technical Feature | Specifications / Details |
|---|---|
| Model | CR304(S) |
| Nominal Power of Main Engine | 5.5 kW |
| Overall Size (L*W*H) | 160 x 100 x 180 cm |
| Machine Weight | 350 kg |
| Operating Temperature Range | -10 ℃ to 50 ℃ (14 ℉ to 122 ℉) |
| Non-Operating Storage Temp | -20 ℃ to 70 ℃ (-4 ℉ to 158 ℉) |
| Relative Humidity (Operating) | 15% to 95% at 40 ℃ (Non-condensing) |
| Compatible Injector Technologies | High-Pressure Solenoid Injectors, Piezoelectric Ceramics (Bosch, Denso, Delphi, etc.) |
| Control Features | Soft Keyboard, Custom Steps Editing, Interactive Diagnostic Database |
