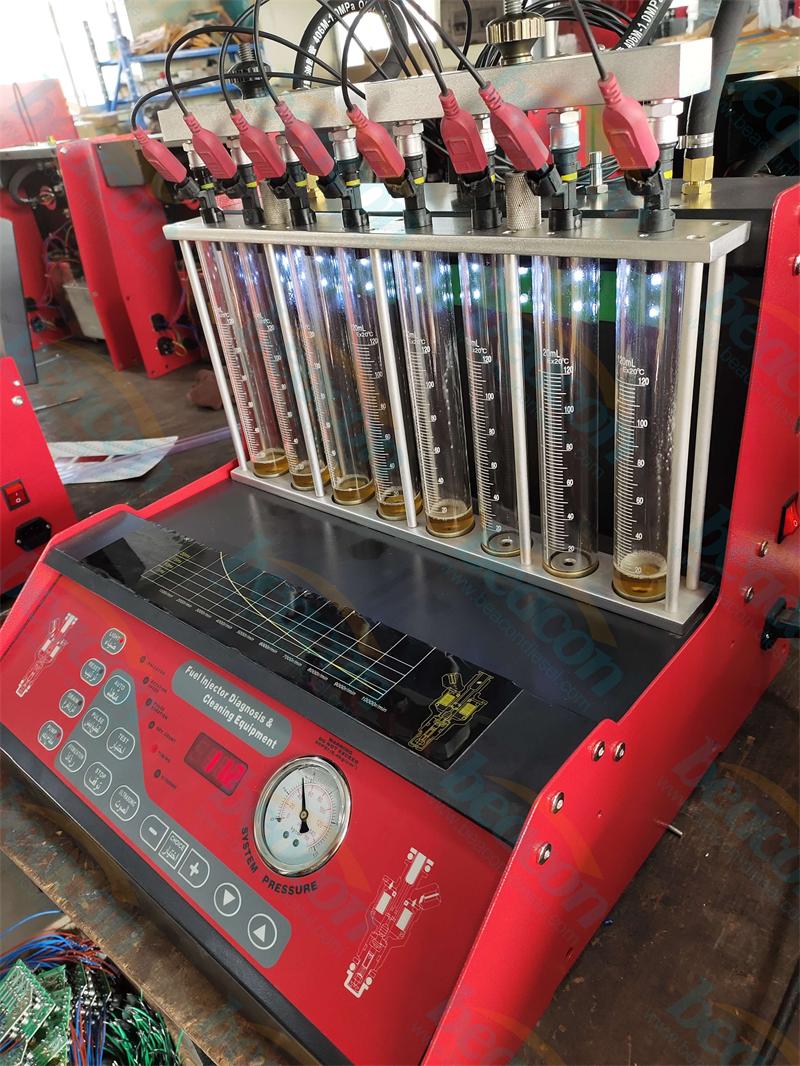

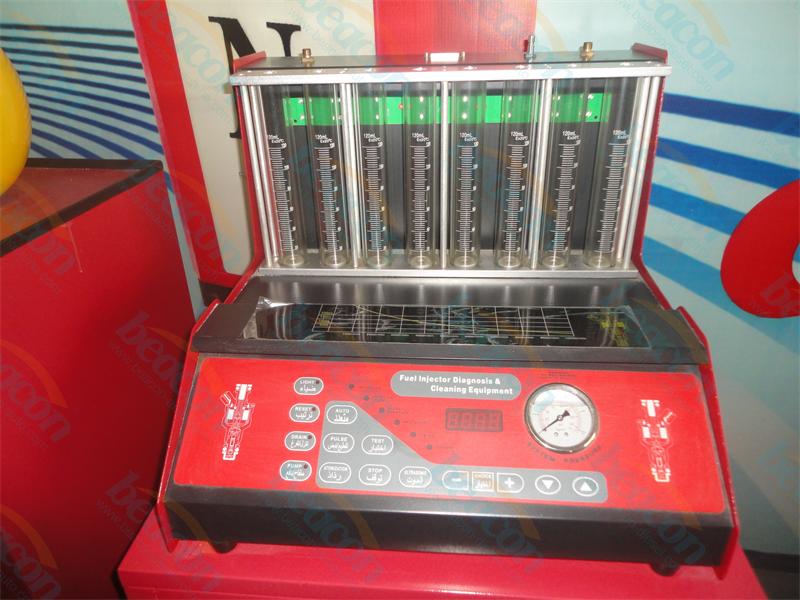

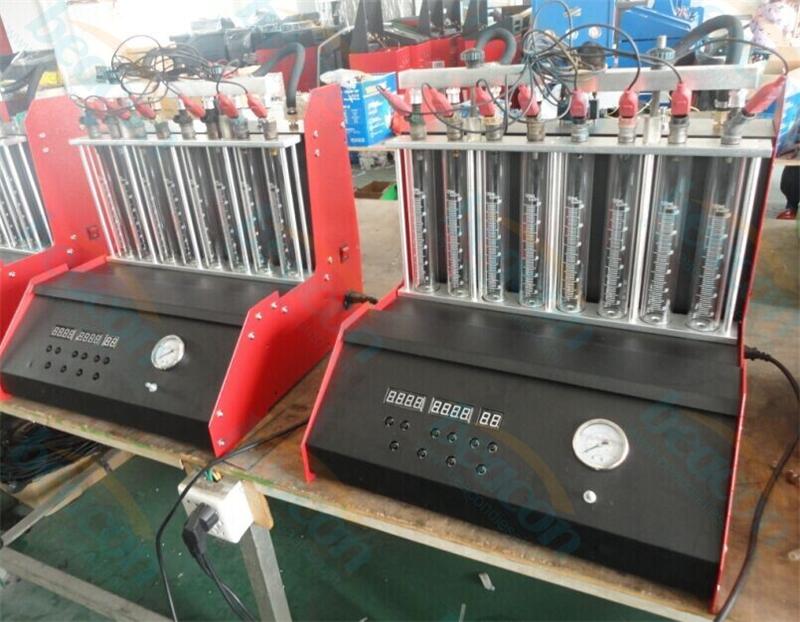

Professional 8-Cylinder Gasoline Fuel Injector Cleaner and Tester Machine
The BC-8H is a high-capacity, professional-grade 8-cylinder gasoline fuel injector analyzer and cleaner. Designed to streamline the maintenance of multi-cylinder engines, this machine allows for the simultaneous testing and cleaning of up to eight injectors, ensuring perfect synchronization and performance balance. It integrates powerful ultrasonic cleaning technology with advanced diagnostic functions such as fuel distribution checking, delivery accuracy analysis, and leakage hunting. With a large 6-liter liquid tank and a 120ml testing tube capacity, the BC-8H provides stable performance and reliable data for a wide range of gasoline injector models. Its multi-language LED interface and automated operation make it an indispensable tool for high-volume automotive workshops.
Professional 8-Cylinder Gasoline Fuel Injector Cleaner and Tester Machine Advantage
8-Cylinder Synchronized Testing: Designed for efficiency, allowing technicians to clean and analyze eight injectors at once—ideal for V6 and V8 engine maintenance.
Integrated Ultrasonic Bath: Built-in 100W ultrasonic cleaner removes stubborn carbon deposits and internal blockages effectively.
Simulated RPM Dynamics: Capable of simulating engine speeds up to 10,000 RPM to verify injector performance under various driving conditions.
Large Fluid Capacity: Features a 6L test liquid tank and 120ml glass tubes for continuous, high-volume testing sessions.
Automated Fluid Return: Testing liquid in the glass tubes drains back to the tank automatically with one click, ensuring a clean workspace.
Multi-Language Support: Intuitive LED display with a clear menu system supporting English, Arabic, Russian, and more.
Durable & Reliable: Stable performance with high-precision flow testing (±2% accuracy) and robust construction.
parámetro
| Technical Specification | Parameter Details (Model BC-8H) |
|---|---|
| Power Supply | AC220V±10% / AC110V±10%, 50/60Hz |
| Input Power | 250W |
| Ultrasonic Cleaner Power | 100W, 25KHz |
| Simulated RPM Range | 0 - 10,000 rpm (Step: 50 rpm) |
| Pulse Width (PW) Range | 0 - 20 ms (Step: 0.1 ms) |
| Injection Time Range | 0 - 600 sec (Step: 1 sec) |
| Liquid Tank / Tube Volume | 6L (Tank) / 120ml (Tube) |
| Dimensions & Weight | 600*500*750mm / Approx. 54kg |
