ARCRI250 Professional Piezo Injector Comprehensive Tester with Dynamic Lift Measurement
Haz clic en el botón de WhatsApp para chatear o deja un mensaje. Nos pondremos en contacto contigo en menos de 12 horas.
Detalles

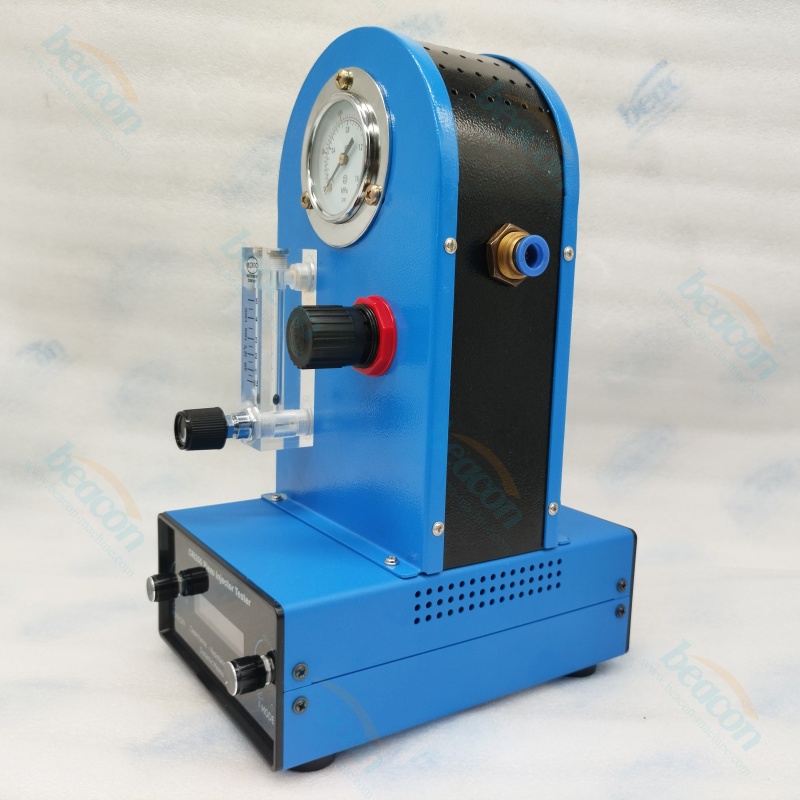

CRI250 Professional Piezo Injector Comprehensive Tester with Dynamic Lift Measurement
The CRI250 is an all-in-one diagnostic solution designed specifically for the advanced testing of piezoelectric common rail injectors. Unlike standard testers, the CRI250 provides a multi-dimensional analysis of the piezo crystal's health, including capacitance, resistance, and insulation levels. Its most advanced feature is the Piezo Crystal Dynamic Lift measurement, which allows technicians to verify the internal mechanical stroke of the injector under high-voltage conditions. Compatible with Bosch, Denso, and Siemens (Continental) piezo systems, the CRI250 ensures that every injector is calibrated to its peak efficiency, making it a critical tool for modern diesel engine specialists and fuel system reconditioning centers.
CRI250 Professional Piezo Injector Comprehensive Tester with Dynamic Lift Measurement Advantage
5-in-1 Comprehensive Testing: Integrates resistance, capacitance, insulation, dynamic lift, and drive signal testing in a single compact device.
Precision Dynamic Lift Measurement: accurately evaluates the mechanical health and valve opening characteristics of the piezo stack.
High Voltage Driving Capability: Adjustable drive voltage from 0 to 178V to simulate real-world engine operating environments.
Universal Piezo Compatibility: Optimized for high-pressure systems from Bosch, Denso, and Siemens/Continental.

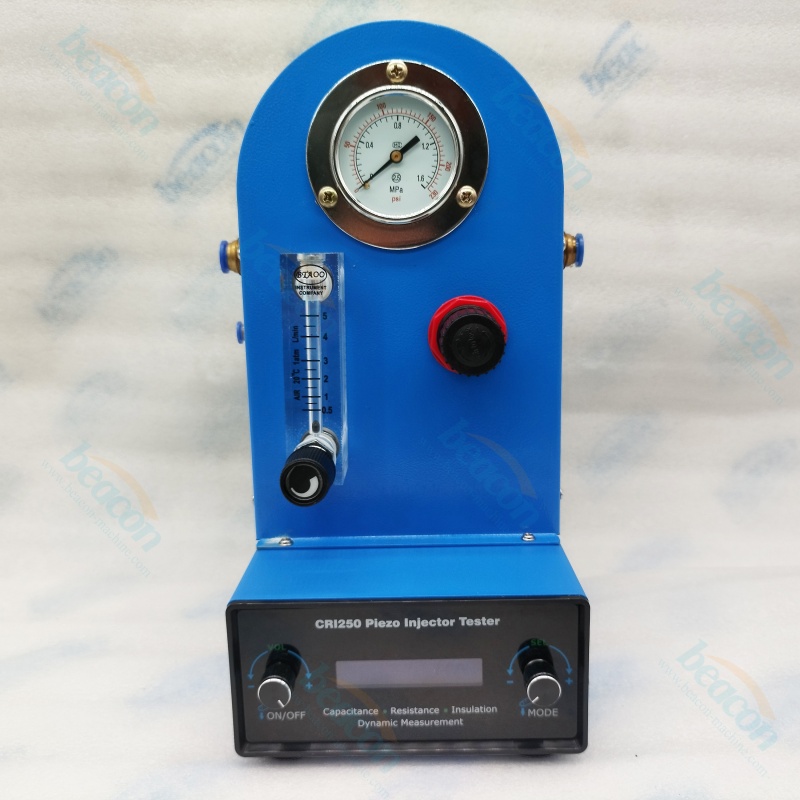

Intuitive Dual-Knob Interface: Simple "VOL/SEL" and "MODE" knobs for rapid parameter adjustments and menu navigation.
Safety-First Protection: Built-in safeguards for high-voltage output and electrical short-circuits to protect the operator and the injector.
Flexible Global Use: Supports a wide input power range (AC 100-240V) for seamless operation in any international workshop.
parámetro
| Technical Parameter | Specification Details (Model CRI250) |
|---|---|
| Tested Components | Piezoelectric (Piezo) Common Rail Injectors |
| Measurement Items | Resistance, Capacitance, Insulation, Dynamic Lift, Inject Test |
| Driving Voltage Range | 0 - 178 V (Adjustable) |
| Pulse Width Range | 0 - 5000 μs (Adjustable) |
| Injection Frequency | 1 - 100 Hz (Adjustable) |
| Power Supply | AC 100V - 240V, 50/60Hz |
| Operation Controls | Dual Rotary Knobs (ON/OFF & MODE Selection) |
| Display Interface | Multifunction LCD with Real-time Status Monitoring |
